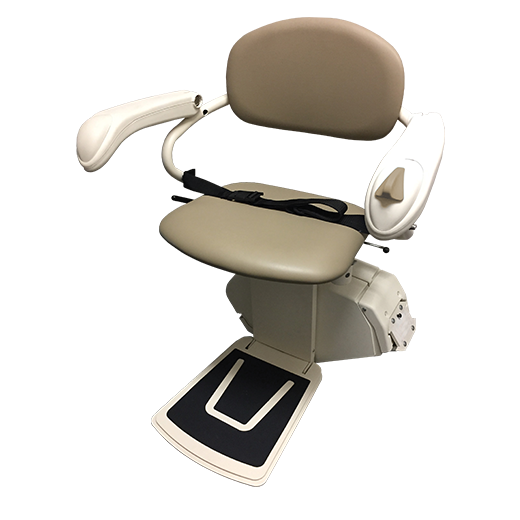

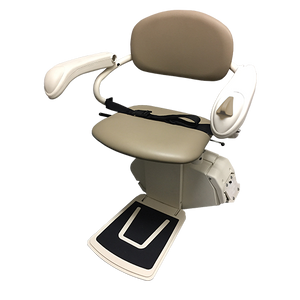

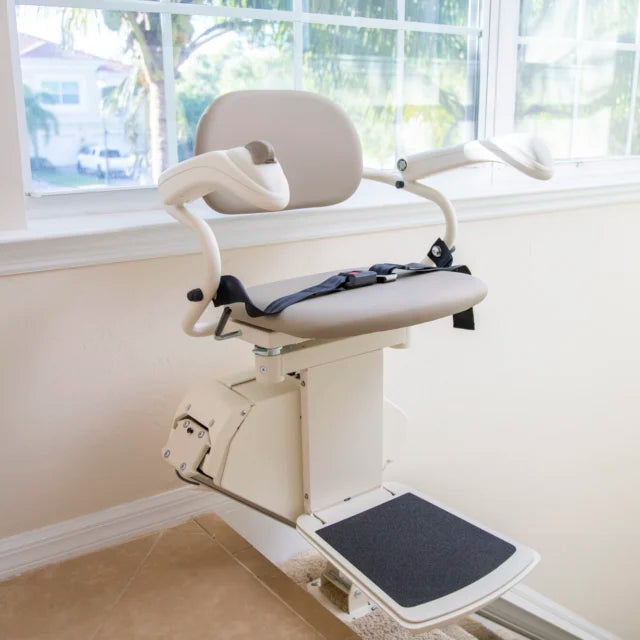

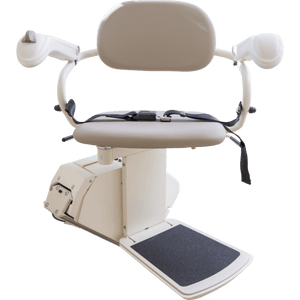

The Pinnacle SL300 Stair Lift is competitively priced with plenty of value. Very compact, it runs smoothly, and requires little to no maintenance.
The Pinnacle Stair Lift has an established reputation as an industry leader for its innovative design, solid performance and reliability. It’s patented drive system serves as the cornerstone that makes this stair lift different from all others on the market.

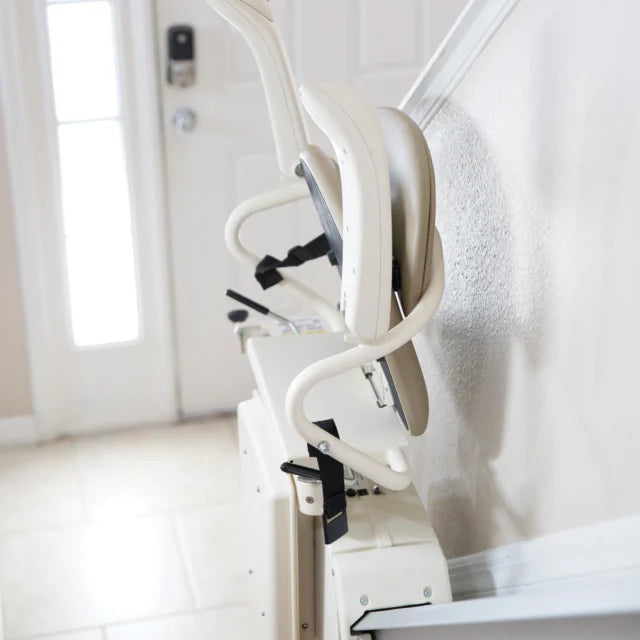

The SL300 gives you peace of mind knowing it’s efficient motor offers extended performance during power loss, up to 60 trips up and down. Owners of this stair lift will enjoy a smooth stable ride due to its patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the most compact of stair lifts, folding closer to the wall so others can pass easily.

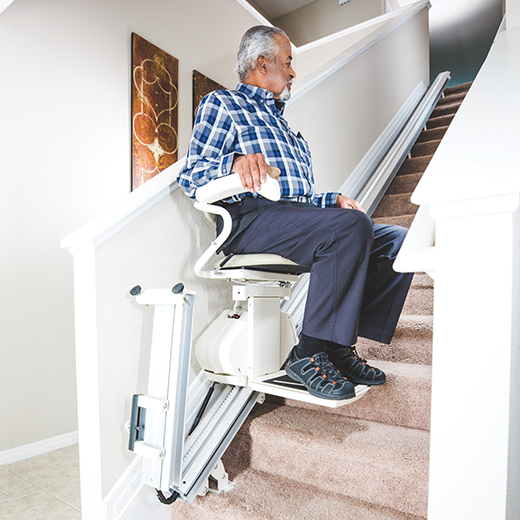

Fold-up Rail - Keep Walkways Safe and Clear
Harmar’s exclusive automatic and mechanical folding rail removes obstructions and trip hazards at the lower landing area. Its operation is automatic, the user does not need to stop or have someone else assist. And since it’s mechanical, there are no additional switches or controls.
Measuring Guide
(click to open in new tab for printing)
Features
- The over-sized worm gear offers greater stability
- Lubrication free, keeps you, your stairs and even your pets free from a mess
- Symmetrical design provides industry's most compact folded width
- Swivel seat at upper landing, for easy and safe, entry and exit away from staircase
- Operable in a power outage – up to 40 trips!

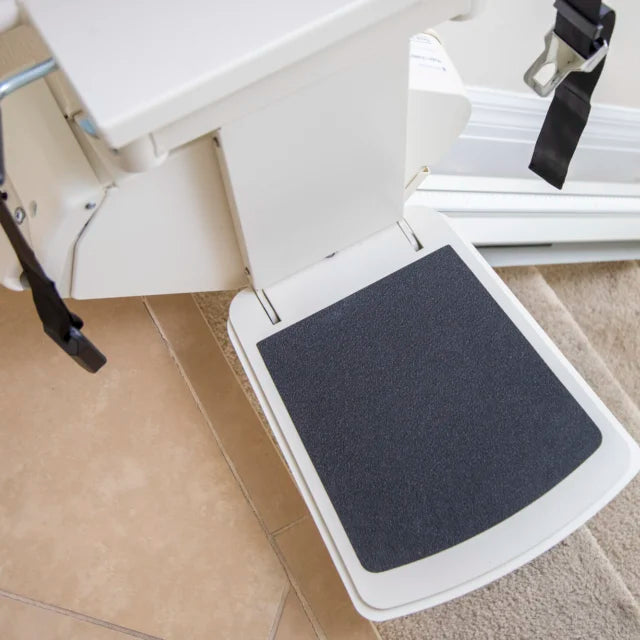

- Safety sensors in the footrest and optional in the chassis will stop the lift if it meets an obstruction
Specifications
- Weight Capacity - 300 lb (136kg)
- Seat Size - Seat: 19" W x 16" D | Back: 16.5 W x 9.5" H
- Speed - 20 FPM
- Folded Width - 11" (13.6" with folding rail)
- Track Length - 15' 6" Standard, Up to 36'
- Power - 24V DC
- Incline Limits - 27° - 52°
- Outdoor - No
- Drive System - Patented Nylon Polymer Gear Rack, Helical Worm Gear
- Safety Features - Seat belt, Overspeed Brake, Audible Alert System, Swivel Seat with Interlock, Footrest Obstruction Sensor
- Warranty - 2-Year Parts Warranty, 10-Year on Gear Rack, 1-Year on Battery
- Optional - Automatic Folding Rail, Retractable Seat Belt, Key Lock, Extra Rail, Chassis Obstruction Sensor, Manual Lowering Tool, Power Footrest, Power Swivel
- Certified:
- ETL Listed
- CSA B44.1/ASME A17.5-2019
- Safety standard ASME A18.1-2020
- Rated residential
